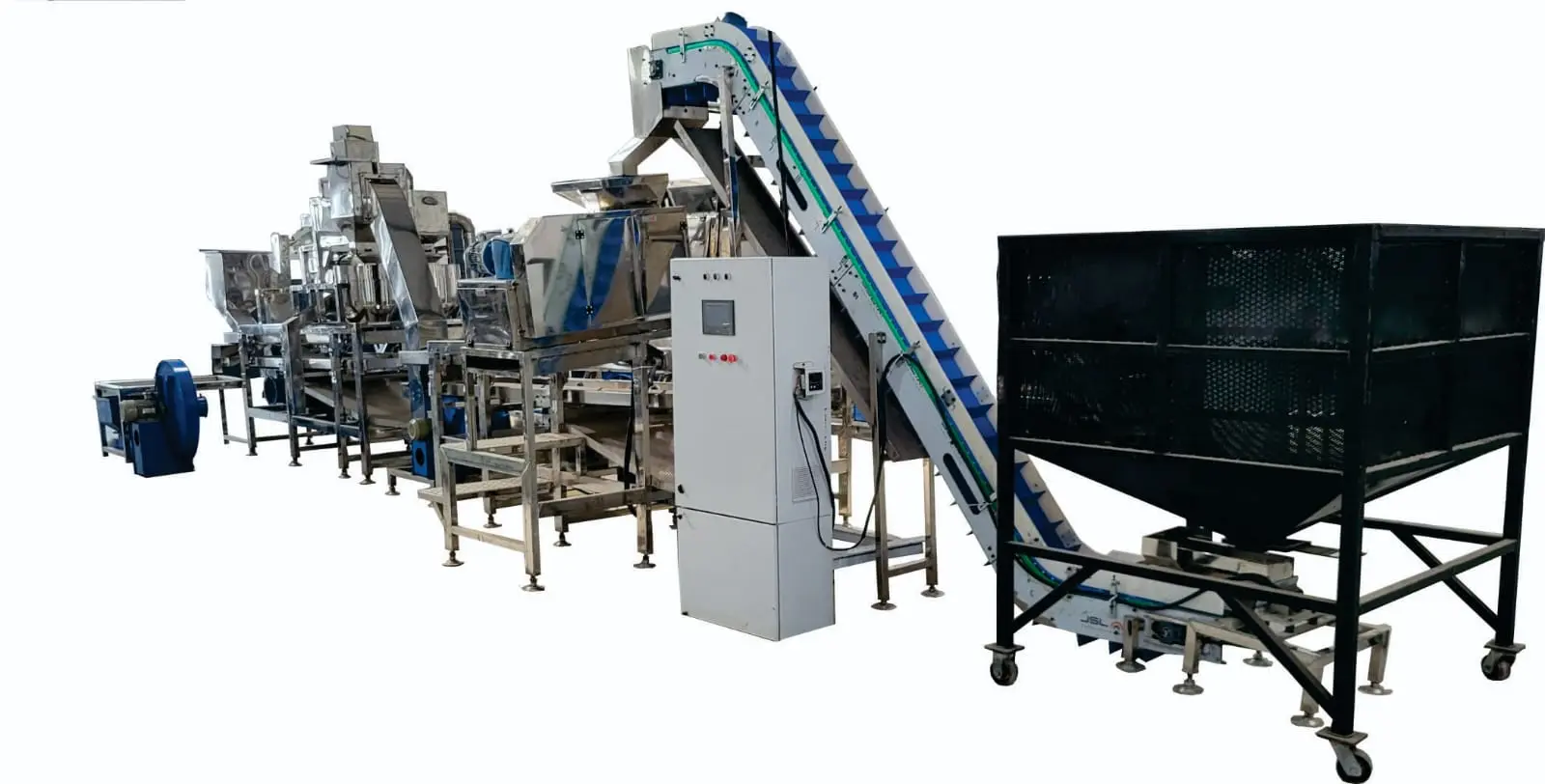

Cashew Shelling Machine - 600

Working parts use S.S. 304, and the machine structure is built in stainless steel. The machine is controlled by a PLC programmer, with control functions and running parameters displayed on a 7-inch touch screen.

Capacity

250-500 kg/hr

Dimension

L15m X W5m X H5m

Whole Kernel Percentage

85-95%

Broken Percentage

1-5% - Nut sizes

Power Consumption

17 KWh

Power Supply

3 Phase, 440V-50Hz

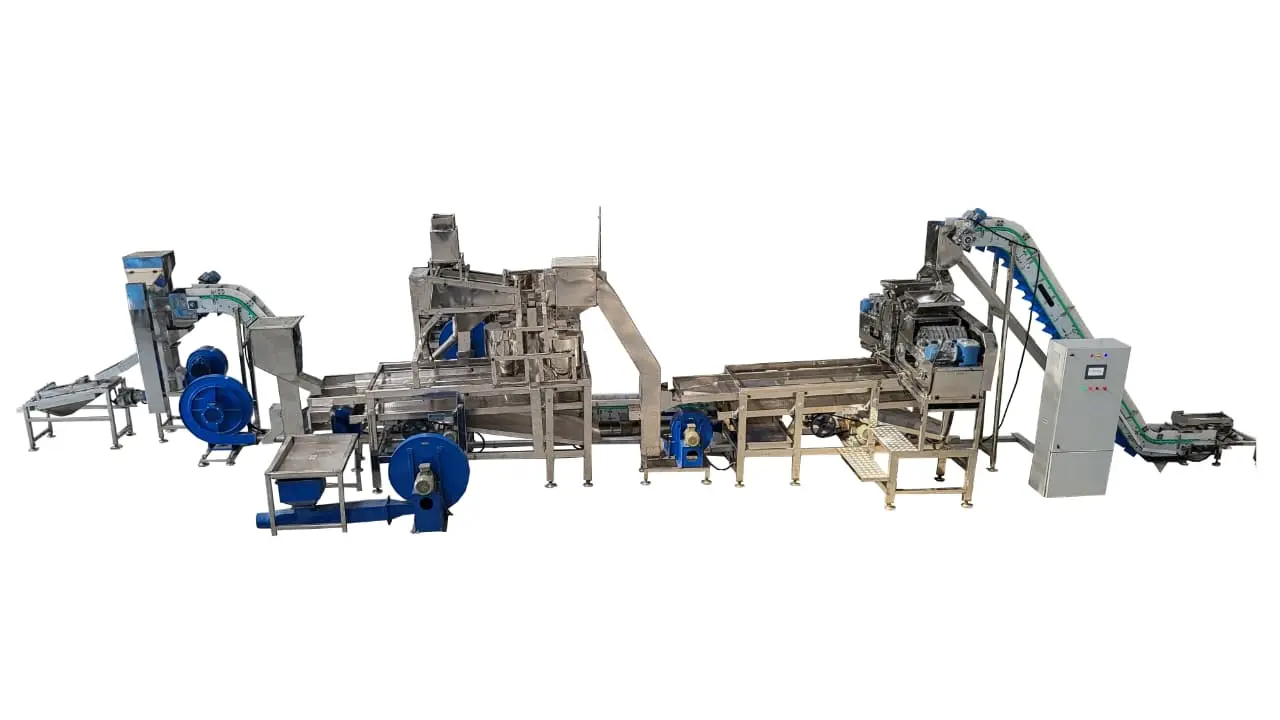

Cashew Shelling Machine - 1200

Working parts use S.S. 304, and the machine structure is built in stainless steel. The machine is controlled by a PLC programmer, with control functions and running parameters displayed on a 7-inch touch screen.

Capacity

500-1000 kg/hr

Dimension

L17m X W6m X H5m

Whole Kernel Percentage

85-95%

Broken Percentage

1-5% - Nut sizes

Power Consumption

24 KWh

Power Supply

3 Phase, 440V-50Hz

Raw Cashew Grading Machine - 1500

Capacity

1200-1500 kg/hr

Dimension

L15m X W2m X H3m

Power Consumption

3 KWh

Power Supply

3 Phase, 440V-50Hz

Raw Cashew Grading Machine - 1000

Capacity

700-1000 kg/hr

Dimension

L15m X W1.8m X H2.6m

Power Consumption

3 KWh

Power Supply

3 Phase, 440V-50Hz

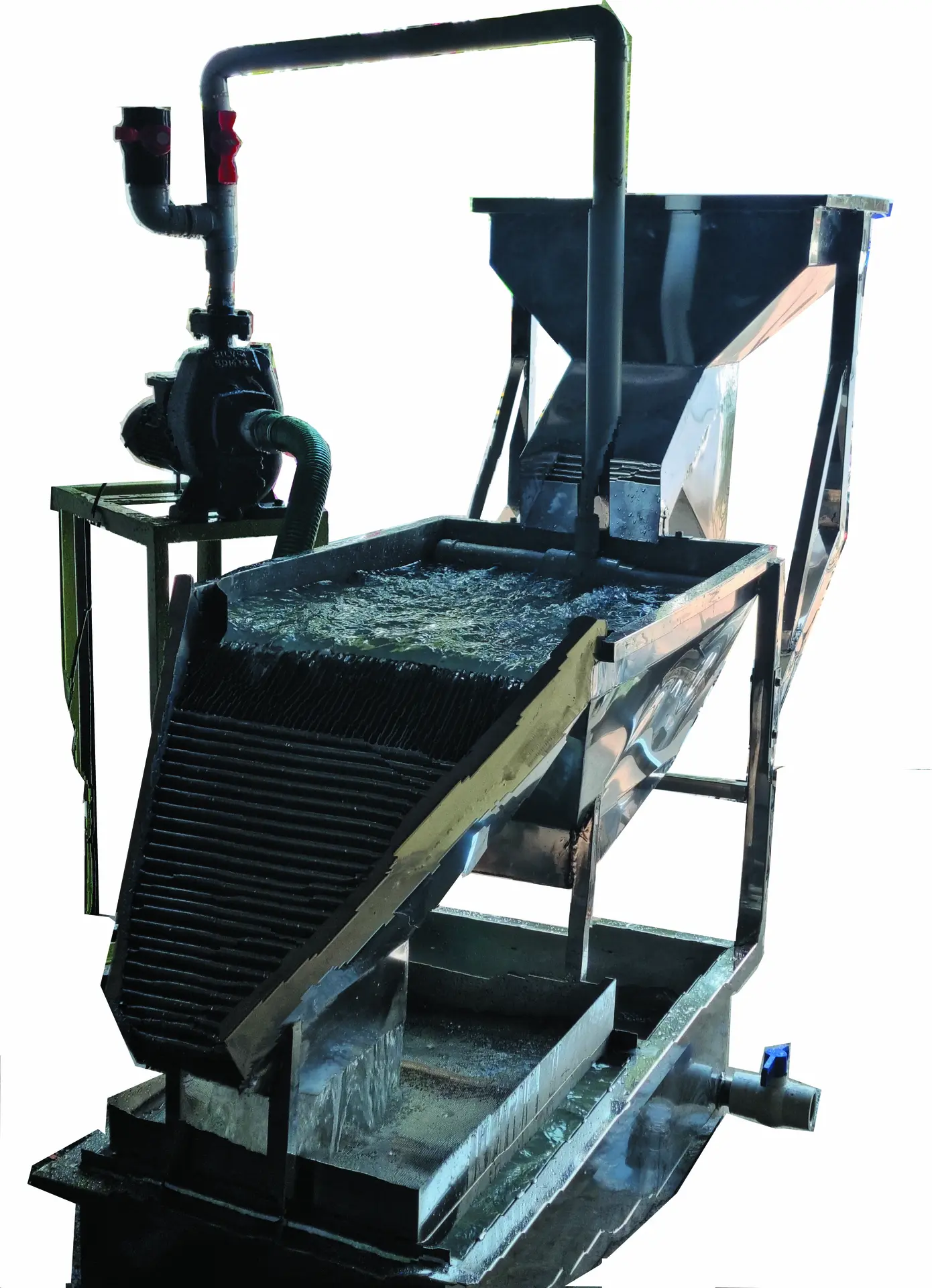

Raw Cashew Destoner - 1000

Working parts use S.S. 304, and the machine structure is built in stainless steel.

Capacity

800-1000 kg/hr

Dimension

L7m X W6m X H3m

Power Consumption

1.5 KWh

Power Supply

3 Phase, 440V-50Hz

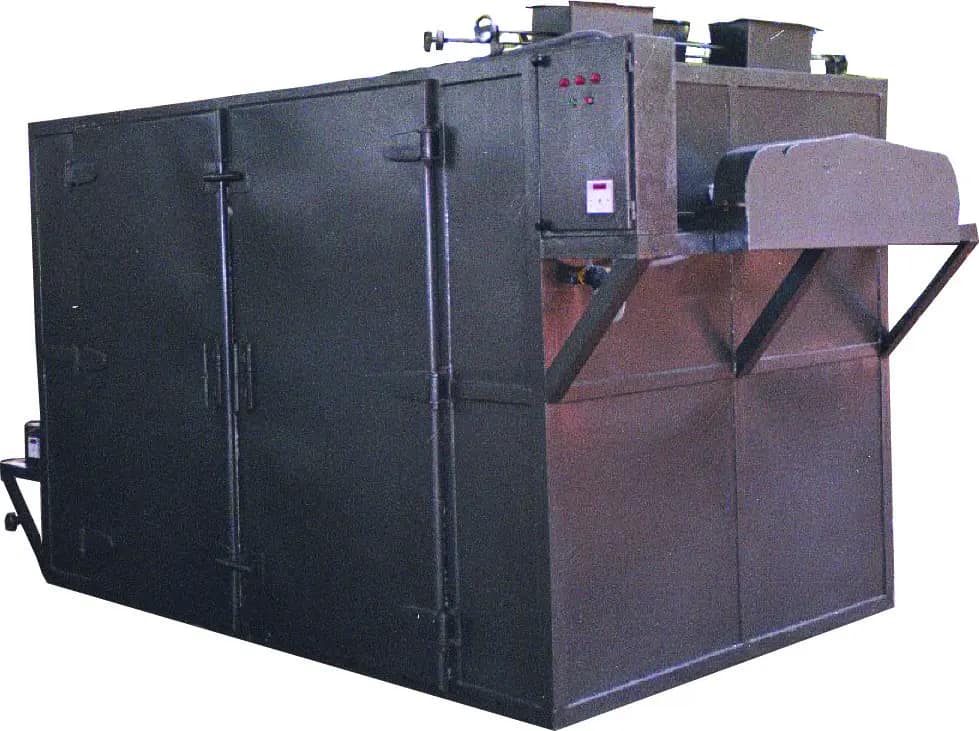

Raw Cashew Dryer

Uniform and quick drying. Temperature upto 130°C can be attained. High efficiency axial flow fan desing gives better performance. Digital temperature indicator CUM controller, gives accurate temperature control.

Capacity

24-240 trays (400MM X 800MM X 32MM)

Power Consumption

1.5 KWh

Power Supply

3 Phase, 440V-50Hz
